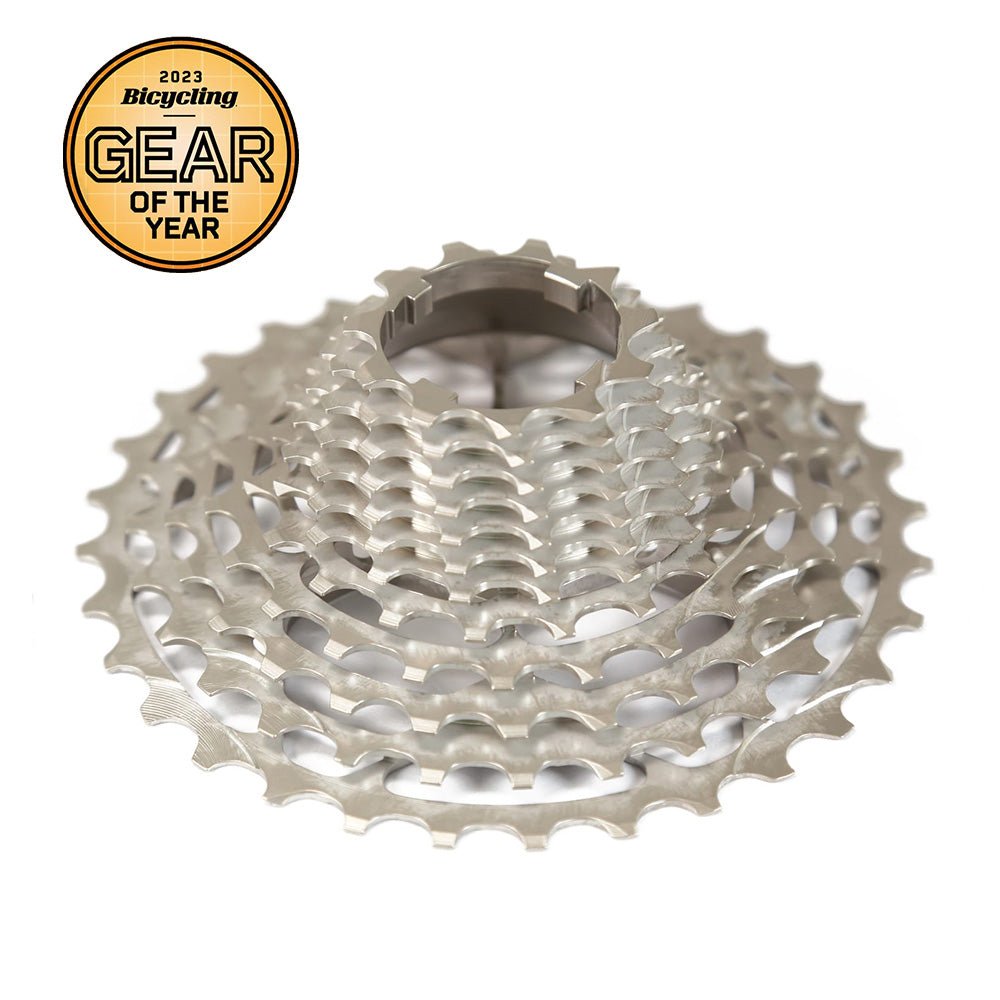

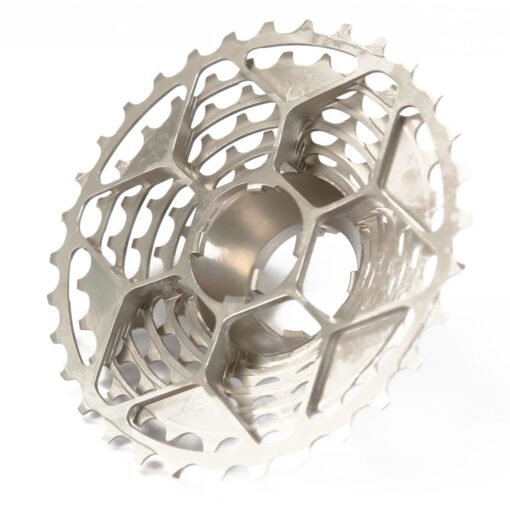

UniBlock PRO Cassette (12 Speed) (Campagnolo)

Greater Freehub Engagement, Smoother Operation

Single block design insures the freehub has MORE engagement no matter what gear your are in. Single cogs from other Cassettes can cut-like-a-knife into freehubs. By increasing and distributing engagement across the entire freehub in any gear, we are reducing torsional loads thus reducing freehub wear and insuring lowest rolling resistance within the freehub. This also makes our Cassettes the safest to use with high-end alloy freehubs. Without any spacers in UniBlock, there is nothing to loose, and nothing you can install incorrectly. Faster cleaning on and off the bike, with quicker, mistake-free installation insures you are ready-to-go!

New ARC™ (Advanced Radial Curve™) Shifting Technology

Prestacycle introduces UniBlock Pro cassettes with ARC™ Shifting tooth profiles. UniBlock Pro ARC™ is our own unique, all-new shifting profile that provides shifting characteristics equaling or improving upon shifting performance for every major brand. We've performed extensive analysis of all major shifting systems. Our results show that due to how narrow chains have become, chains offer only small differences that contribute to shifting performance. Meanwhile, a great deal of varying technologies exist in cassette tooth profiles from major drivetrain manufacturers creating different specific benefits in one system or another. By examining the demands and benefits required by each particular drivetrain, we've been able to create a new system with the benefits of all drivetrains using one new design, creating all advantages to all systems. Our new design facilitates the fastest, smoothest possible shifting to all systems while minimizing the impact to power delivery.

Going deeper, we've optimized every single tooth pairing on every cassette. A shifting profile from a 16T-to-17T cog is different from a 15T-to-17T cog on a different cassette. These exact-match pairings for both up-and-down shifts provide the highest possible speed and reliability in shifting. Even shifting under load is maximized. Our new Professional cassettes create a new generation of compatibility and enhanced shifting performance.

Campagnolo 9-12 Freehub Profile - more surface contact

Prestacycle UniBlock Pro's splines are compatible with all Campagnolo 9-12 speed freehubs, as well as N3W adapter kit. Wider inner and outer freehub teeth maintain engagement at all points in all gears and create an overall increase in freehub contact, no matter what gear you are in.

* See intallation notes

11-25T:

Ratios: 11-12-13-14-15-16-17-18-19-21-23-25
Weight: 163 g

11-32T:

Ratios: 11-12-13-14-15-16-17-19-22-25-28-32
Weight: 213 g

11-34T:

Ratios: 11-12-13-14-15-16-17-19-22-25-29-34
Weight: 234 g

— COMPATIBILITY —

• GEARS: 12 Speed
• SHIFTING: Campagnolo

• FREEHUB: Campagnolo 9-12 speed
  (also N3W freehub with Campagnolo brand adapter)


— PERFORMANCE —

• Maximum Performance 12 Speed Shifting
• Interchangeable Drivetrain performance
• Ultra-Strong ChroMoly 3D Structure
• Ultra-Light – less material needed
• Larger, better-distributed Freehub engagement
• Easier to Clean
• Red alloy locknut included

Always adjust shifting for any new Cassette

While Tooth gaps and shifting profiles are optimized for all systems, re-adjustment may be necessary. Various brands of freehubs can cause small variations in cassette positioning.

Confirm Compatibility with your derailleur

Not all derailleurs are compatible with all gear ranges. Please verify if your derailleur is compatible with the largest tooth size, and cog gaps that you are ordering. Electronic shifting systems are the most picky about working with gear ranges not offered by the Original Manufacturer.

Limit screw settings can vary with any cassette / wheel change

We highly recommend setting the limits screws to offer no-more-than regular free operation of the min/max gears.

Optional Cassette spacer is included

Prestacycle 11 and 12 Speed Cassettes include a 1mm spacer which can optionally be used to move the cassette farther from the spokes. Different wheelsets, different brands of hubs, variations with custom built wheels using different construction, the spacing of the derailleur hanger and many more factors can all determine if the spacer is needed, optional or specifically should not be used.

Reasons to use this spacer:

• The Chain/derailleur is too close to the spokes when in the largest cog
• The gear range is outside of the derailleur min/max range
• Moving the cassette outward improves the bike's chainline
• Moving the cassette outward makes it more compatible with wheel swaps

Reasons to NOT use this spacer:

• The spacer pushes the freehub engagement off the end of the freehub
• The gear range is outside of the derailleur min/max range
• You are using our optional lockring to put 11/12 speed on a 10 speed wheel
• The smallest cog is too close to the frame's chainstay or rear dropout
